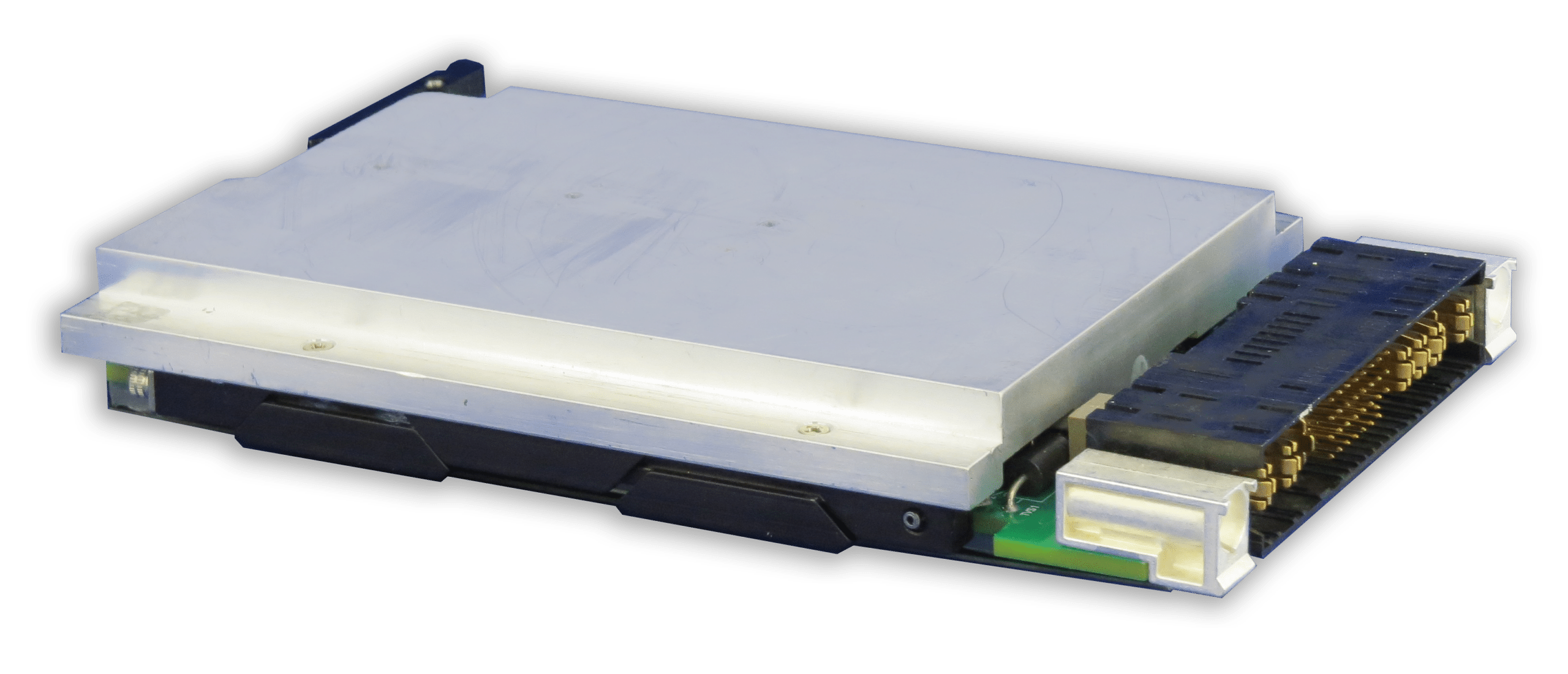

VPX2703UC
Single Slot VPX Power Converter Card
Features:
- 270Vdc per MIL-STD-704F
- 6 Output Voltages, 650W
- MIL-STD-810F Environmental *
- MIL-STD-461E EMI *
- Single Slot VPX Power Card
Product Description
This single slot 270Vdc VPX power card offers six outputs at 650W maximum power and includes internal filtering. This standard PSU is available as a COTS military power supply solution designed to meet applicable portions of MIL-STD-810F vibration and shock and MIL-STD-461E EMI requirements. The very thin VPX2703UC provides users with higher efficiency (up to 93%), and higher power (up to 650W), yielding a SWaP optmizied approach to power. It also has alignment keys that offer keying options when using multiple power supplies in one chassis.
* Designed to meet portions of the standard. Contact us for more details.Product Variations:
PART NUMBER |
V1 OUT |
V2 OUT |
V3 OUT |
V4 OUT |
V5 OUT |
V6 OUT |
TOTAL POWER OUT |
---|
