AP34G03K5281-02
Power Supply & Battery Charger
Features:
- AC 3 Phase: 150-450VAC/60HZ, AC Single Phase: 85-264VAC/45-64HZ wide input range.
- Wide Output range – Isolated 23-32 VDC, 3,500W Power Supply
- Rugged & Waterproof (IP65)
- Extreme temperature operating ranges from -40 ֯C up to 60 ֯C (Derating starts at 60 C) ֯
- High efficiency & Reliability
- Light Weight, less than 25Kg
- Designed to meet regulations MIL-STD-810, MIL-STD-461, EN61000, IEC/EN 62368-1: Ed.3
- Remote On / Off, Indication LEDs, Power Good, Ethernet Monitoring and Control
- MTBF > 45,000 Hours
- 25Kg
- Dimensions: 270 x 200 x 690 mm (W x H x D)
- Convection fan cooled
Product Description

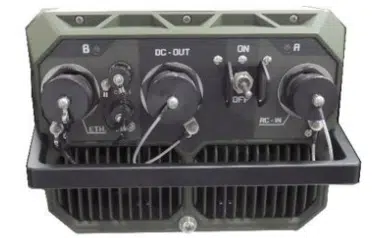

The AP34G03K5281-02 3,500w AC/DC is a DC power supply & battery charger with output of 28 VDC/125 Amp., with its reliable construction and electronics, is best suited for harsh environmental conditions. Its waterproof housing, high performance and superb reliability make the AP34G03K5281-02 an ideal DC power source for use in vehicles, naval, open-air applications, and many others. The product can also be tailored to meet specific project requirements.
* Designed to meet applicable portions of the standard. Contact us for more details.Related products
-
